124.80 $

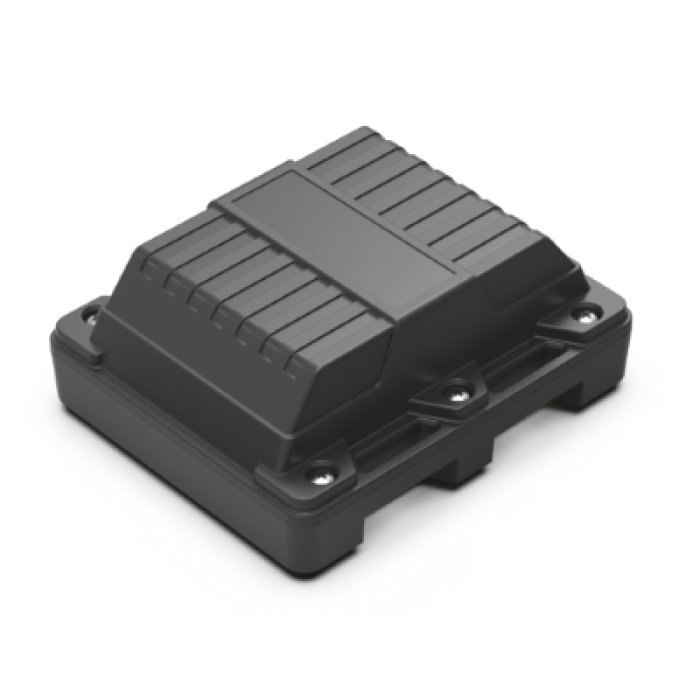

Tracking device Vega LM-1

Tracking device Vega LM-1
Tracking device Vega LM-1
Tracking device Vega LM-1
Tracking device Vega LM-1
Tracking device Vega LM-1
Tracking device Vega LM-1
Brand: Vega Absolute
Product Code: LM-1
SKU: LM-1
Reviews: (0)
Pre-Order
124.80 $
Ex Tax: 104.00 $
Specifications: (see all)
Built-in three-axis accelerometer
yes
Destination
Industrial
GPS/GLONASS antenna type
internal
Sensitivity of navigation receiver
no less than -160 dBm
USB-port
mini-USB, type B
Shipping We will deliver the order in 1-2 days. Payment Pay quickly and conveniently Cumulative discounts Collect bonuses and gifts

Vega LM-1 tracking is designed to determine the height above sea level, an angle of deviation from the vertical, moving beginning, and the coordinates by GLONASS/GPS satellites inside the local LoRaWAN® network.

Vega LM-1 can determine an angle of deviation from the vertical with high accuracy through built-in three-axis accelerometer. This information may be used for initiating an extraordinary communication session, and also it may be transferred with the standard packet in the LoRaWAN® network.

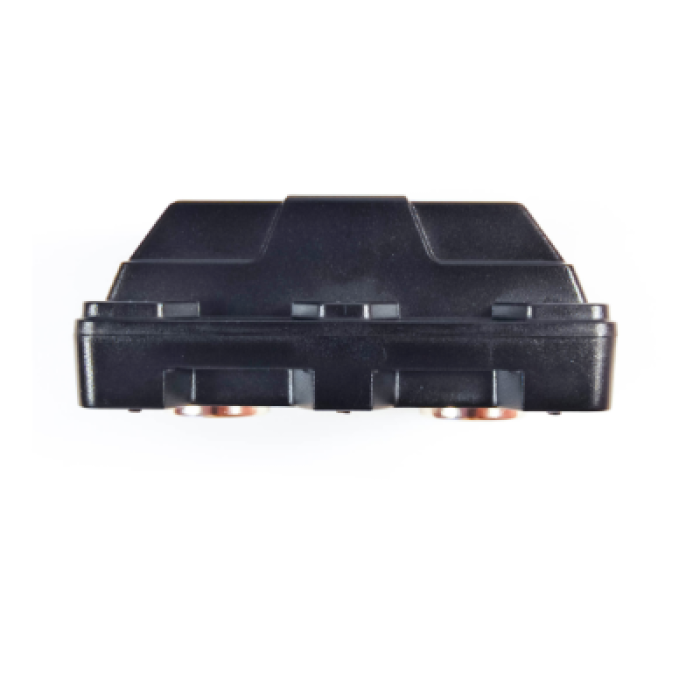

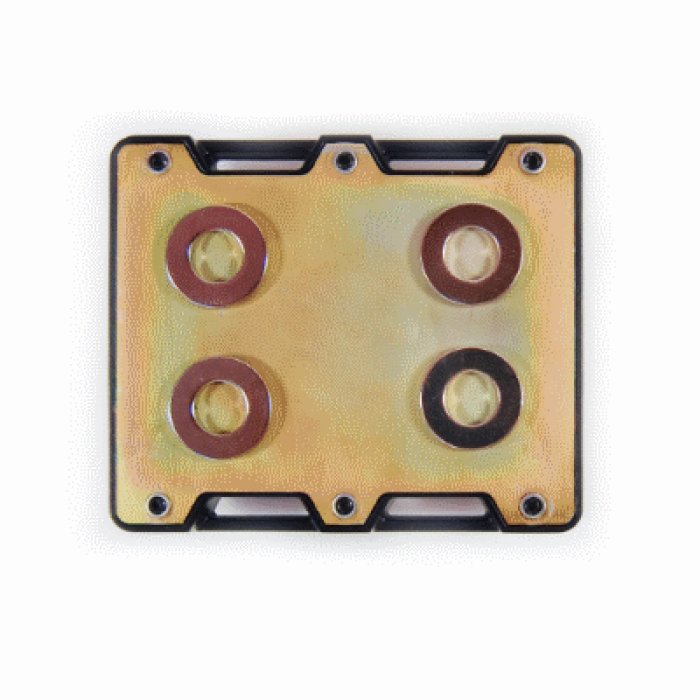

The housing has magnetic mountings with the neodymium magnets, and also eyelets for mounting straps. IP67 ingress protection rating and operating temperatures from -40 to +70 °С allows to mount device in the cold rooms and outside.

High power battery provides autonomous device operating up to 6 years if the communication period is 1 hour.

Depending on the selected capacity of the built-in battery, there are two options for the device:

  • Vega LM-1 6400 mAh
  • Vega LM-1 12800 mAh

Both options have the same other characteristics and functionality.

Characteristics
Built-in three-axis accelerometer
yes
Destination
Industrial
GPS/GLONASS antenna type
internal
Sensitivity of navigation receiver
no less than -160 dBm
USB-port
mini-USB, type B
Operating temperatures, °С
-40…+70
LoRaWAN® class
A
Number of LoRaWAN® channels
16
Frequency plan (depend on choosed firmware)
RU868, EU868, IN865, AS923, AU915, KR920, US915, KZ865, custom (EU868 based)
Activation type
ABP or OTAA
Communication period
1, 5, 15, 30 minutes, 1, 6, 12 or 24 hours
Data collection period
5, 15, 30 minutes, 1, 6, 12 or 24 hours
Antenna type
internal
Sensitivity
-138 dBm
Radio coverage within line of sight
up to 15 km
Radio coverage in restrained urban conditions
up to 5 km
Transmitter power by default
25 mW (configurable)
Maximum transmitter power
100 mW
Built-in battery
12800 mAh
Ingress protection rating
IP67
Mounting
magnetic/straps
