127.92 $

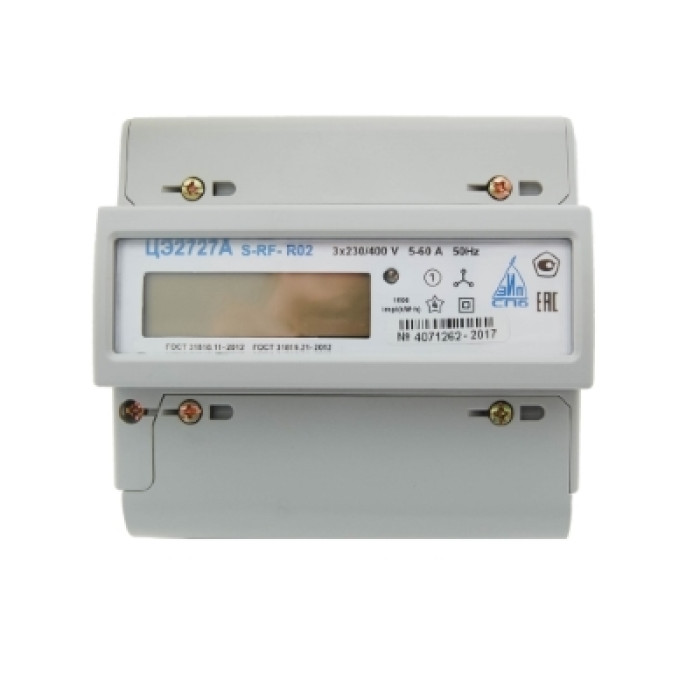

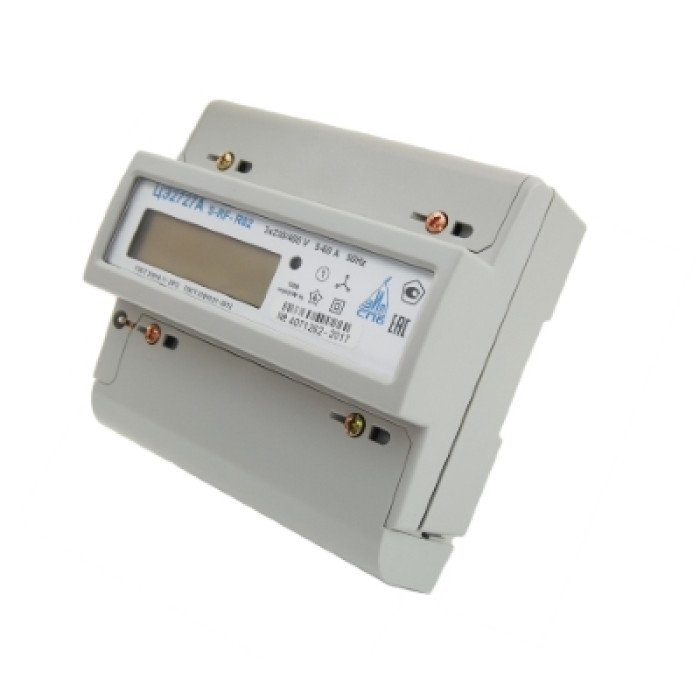

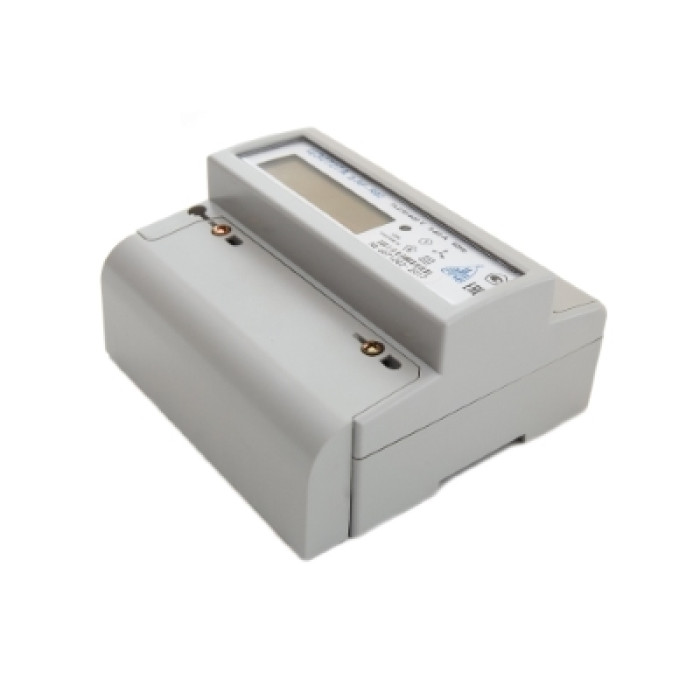

Electricity meter CE2727A R02

Electricity meter CE2727A R02
Electricity meter CE2727A R02
Electricity meter CE2727A R02
Electricity meter CE2727A R02
Electricity meter CE2727A R02
Electricity meter CE2727A R02
Brand: Vega Absolute
Product Code: CE2727A-R02
SKU: CE2727A-R02
Reviews: (0)
Pre-Order
127.92 $
Ex Tax: 106.60 $
Specifications: (see all)
Destination
Industrial
External power
3x 220/380; 3x230/400V
Nominal (maximum) current
5(10); 5(50); 5(60); 10(100) А
Nominal network frequency
50 Hz
Number of tariffs
up to 4
Shipping We will deliver the order in 1-2 days. Payment Pay quickly and conveniently Cumulative discounts Collect bonuses and gifts

Counters CE2727А are designed for multi-tariff (up to 4 tariffs) active energy meters in three-phase three- and four-wire AC networks with a rated frequency of 50 Hz. Connect to the electrical network directly.

The radio module is installed inside, which accumulates and transmits information about the readings to the LoRaWAN® network.

The meter acts as a LoRaWAN® device of class C.

Characteristics
Destination
Industrial
External power
3x 220/380; 3x230/400V
Nominal (maximum) current
5(10); 5(50); 5(60); 10(100) А
Nominal network frequency
50 Hz
Number of tariffs
up to 4
Sensitivity (for directly switching meters) at % from In
0.4 %
The accuracy class
1
The total (active) power consumed in the meter voltage circuit
10.0(5.0) V·А (W)
Total power consumed in the current circuit
0.2 V·А
Weight
2 kg
Сounter constant
500; 1000; 6000 pls/kW·h
Operating temperatures, °С
-40…+70 °С
LoRaWAN® class
C
Number of LoRaWAN® channels
16
Frequency plan (depend on choosed firmware)
RU868
Activation type
OTAA
Communication period
1 hours (configurable)
Data collection period
2 hours (configurable)
Antenna type
internal
Sensitivity
-138 dBm
Radio coverage within line of sight
up to 15 km
Radio coverage in restrained urban conditions
up to 5 km
Transmitter power by default
25 mW
Ingress protection rating
IP51
