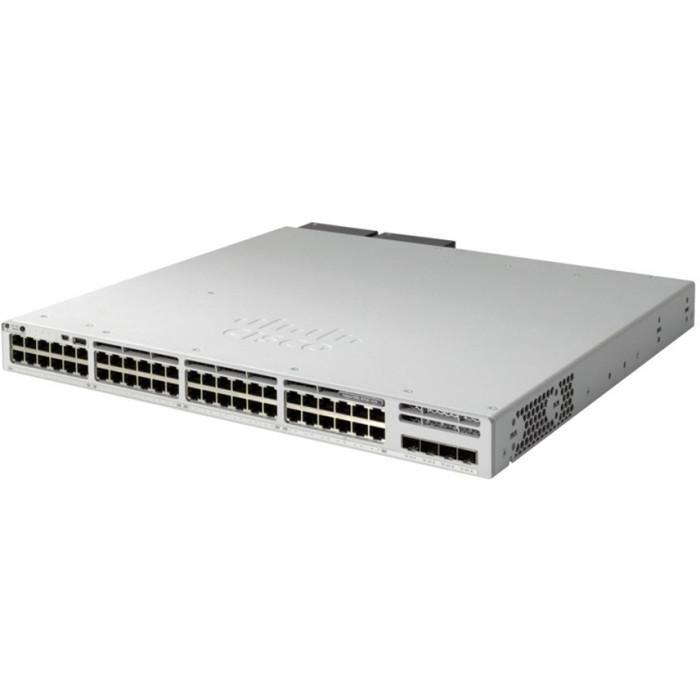

Switch Catalyst 9300L 48p PoE, Network Essentials ,4x10G Uplink

The Cisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco’s lead enterprise architecture. At up to 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Cisco Universal Power over Ethernet (Cisco UPOE®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS® XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence

Quick specifications

• Product Name: Catalyst 9300 48-port fixed uplinks PoE+, 4X1G uplinks, Network Essentials

• Product Type: Ethernet Switch

• Designed to replace: Catalyst 3850

• Supported IOS: Network Advantage, Network Essentials

• Network modules options: Fixed Modules

• Stack Technology: StackWise-320

• Stacking bandwidth: 320 Gbps

• Total number of MAC addresses: 32,000

• Total number of IPv4 routes (ARP plus learned routes): 32,000 (24,000 direct routes and 8000 indirect routes)

• IPv6 routing entries: 16,000

• Multicast routing scale: 8,000

• QoS scale entries: 5,120

• ACL scale entries: 5,120

• Packet buffer per SKU: 16 MB buffer for 24 and 48 port Gigabit Ethernet models

• Flexible NetFlow (FNF) entries: 64,000 flow on 24- and 48-port Gigabit Ethernet models

• DRAM: 8 GB

• Flash: 16 GB

• VLAN IDs: 4094

• Total Switched Virtual Interfaces (SVIs): 1000

• Jumbo frames: 9198 bytes

• Switching capacity: 56 Gbps - 176 Gbps

• Forwarding rate: 41.66 Mpps - 130.95 Mpps
